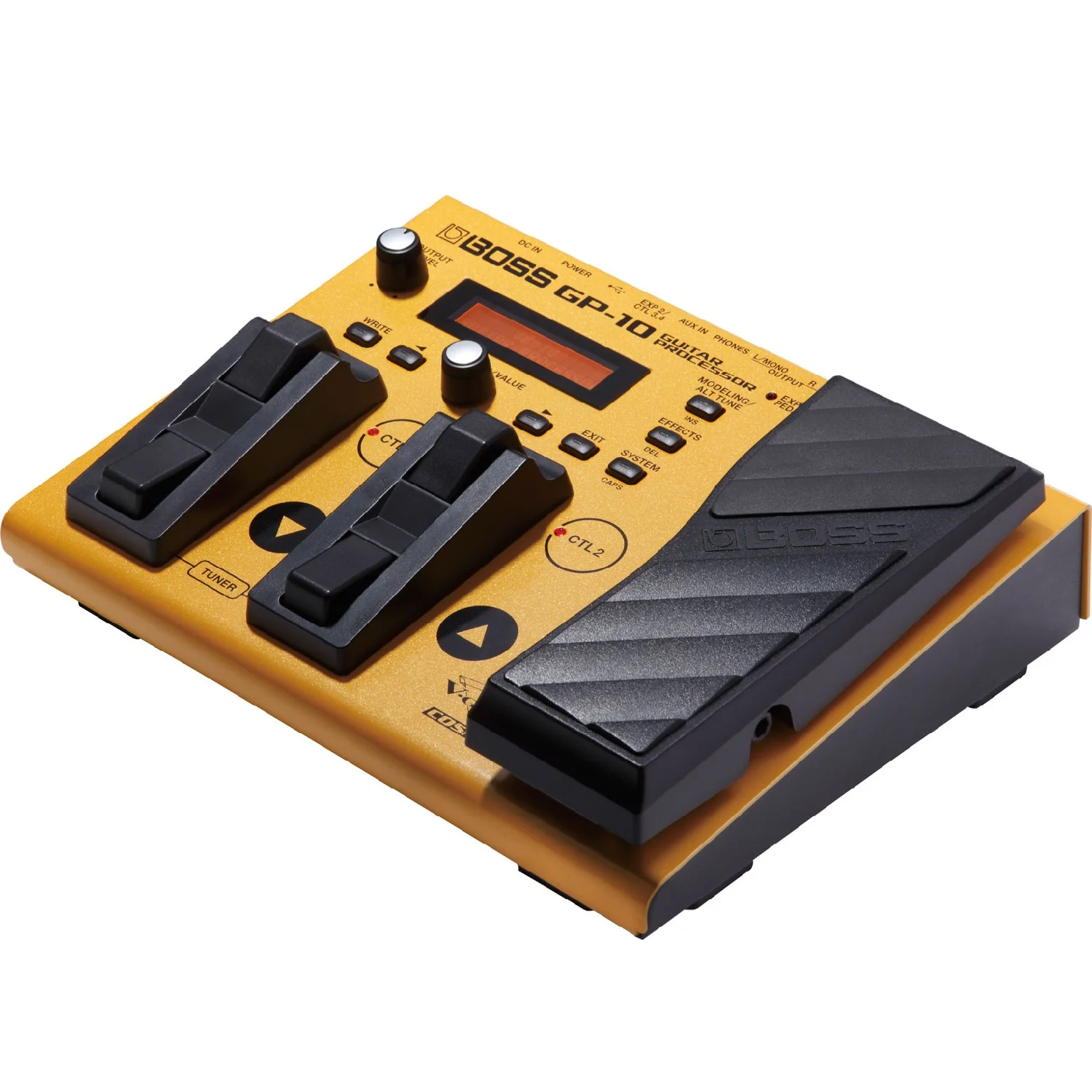

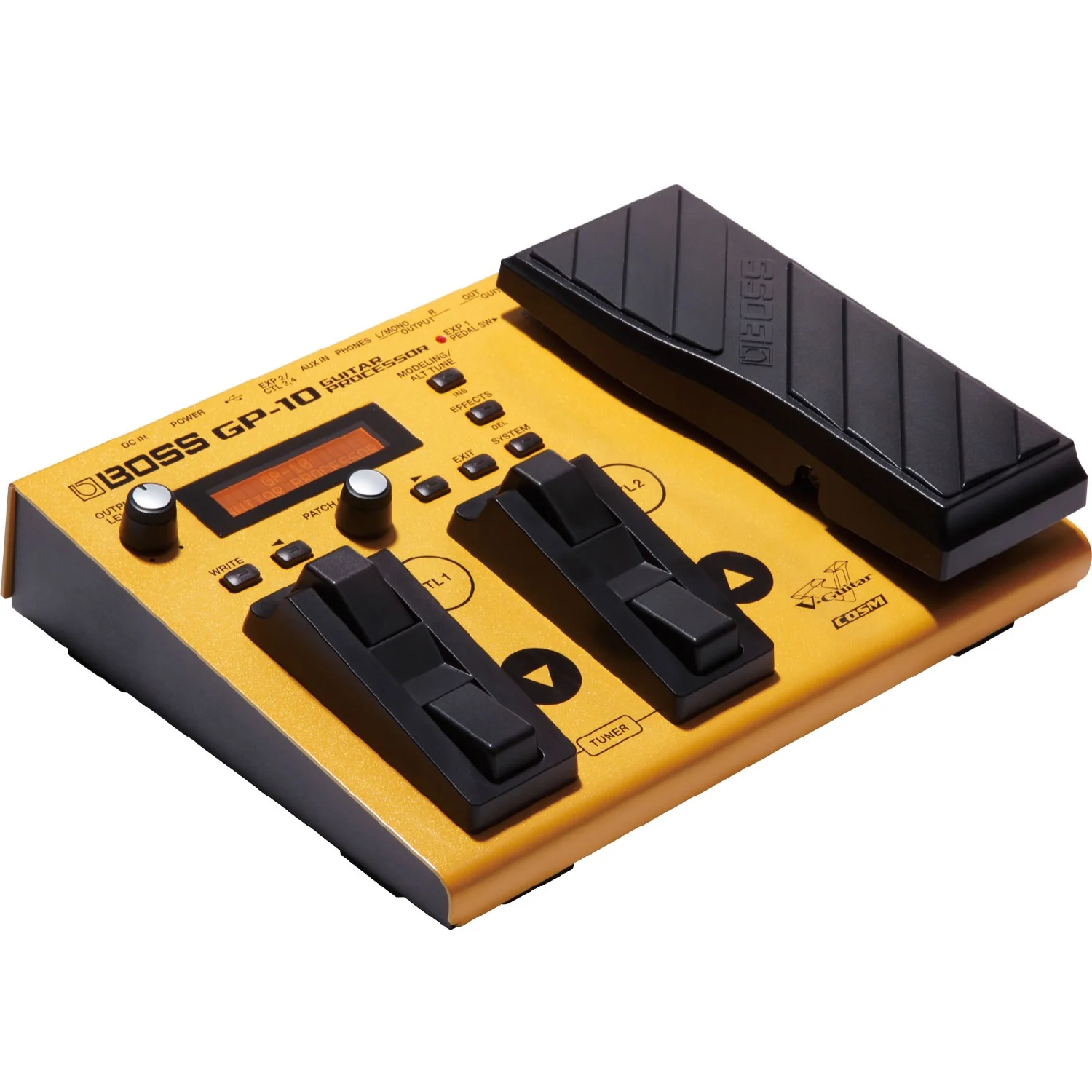

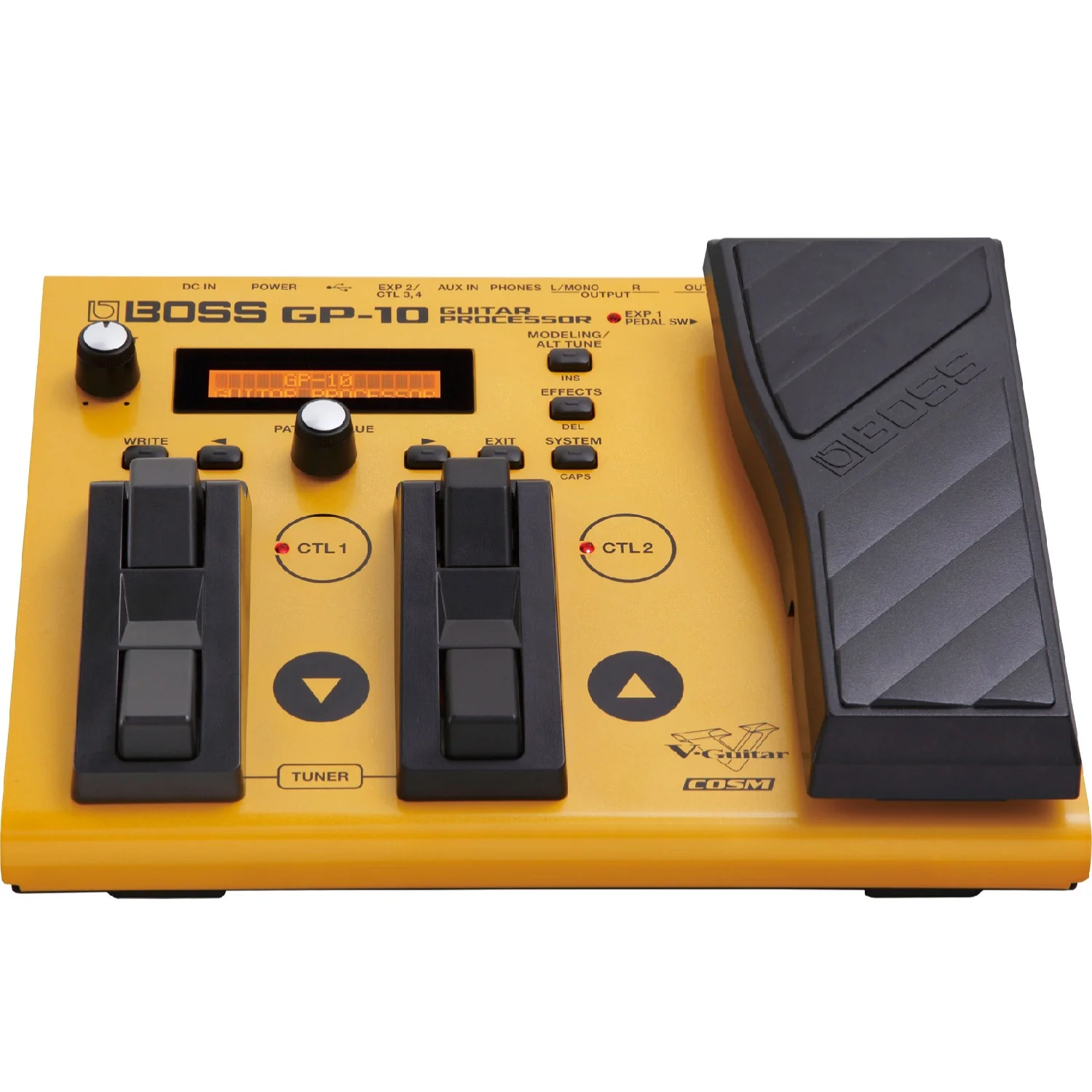

Boss GP-10GK Guitar Effects Processor with GK-3 Pickup Overview:

The new GP-10 puts a universe of amazing tones and tunings at your command, all in one compact processor that’s affordable and easy to use. With a Roland GK-compatible pickup on your guitar, the GP-10 lets you transform your sound into numerous classic electric and acoustic guitar types, basses, and even analog-modeled synths, including the legendary Roland GR-300. Not stopping there, you have access to instant altered tunings, including popular open tunings, 12-string tones, and “down” tunings that are essential for today’s ultra-heavy rock styles. The versatile GP-10 also functions as a full-featured multi-effects processor for both GK and normal pickups, giving you a huge selection of COSM amps and effects for live playing and studio recording. In addition, USB connectivity lets you capture GP-10 tones directly into your DAW, and you can even play computer-based soft synths from your axe with the GP-10’s guitar-to-MIDI convertor!

Features:

• Instant access to down tunings, open tunings, 12-string sounds, and your own custom tunings

• Instrument modeling powered by COSM technology, including conventional electric, acoustic, and bass guitars, plus sitar, banjo, fretless guitar, and others

• Analog guitar synthesizer modeling driven by real-time DSP allows you to play expressive, ultra-responsive synth tones

• Create totally new sounds by blending modeled and normal guitar tones together

• High-quality COSM amps and multi-effects derived from the GT-100

• 13-pin input for guitars equipped with a Roland GK-3 Divided Pickup or other GK-compatible pickup

• Standard 1/4-inch guitar input allows for use of amps and effects with any guitar

• USB audio/MIDI interface for multi-channel audio recording (including individual string output) and guitar-to-MIDI conversion with GK pickup

• BOSS TONE STUDIO editor/librarian for Mac/Windows and custom patches
• available at bosstonecentral.com

• Download and share Livesets at BOSS Tone Exchange

• Available with or without a GK-3 Divided Pickup

• Play the GP-10 and another 13-pin GK device at the same time using the GKP-2 Parallel Cable (optional)

Specificarions:

• Modeling
  • Electric guitar: 12 types

  • Acoustic: 9 types

  • Bass: 3 types

  • Guitar synthesizer: 3 types

  • Poly FX: 5 types
• Alternate Tuning
  • OPEN: D, E, G, A

  • DROP: D to A

  • D-MODAL

  • NASHVILLE

  • SHIFT: -12 to +12

  • USER

  • 12-string guitar function
• Effects
  • Preamp: 30 types

  • FX: 16 types (including OD/DS)

  • OD/DS: 21 types

  • Wah: 6 types

  • Chorus: 3 types

  • Delay: 10 types

  • Reverb: 7 types

  • EQ: 1 type

  • Noise Suppressor(NS): 1 type
• Patch Memory: 99
• AD Conversion:
  • GK Pickup: 24 bits

  • GUITAR IN: 24 bits + AF method
• DA Conversion: 24 bits
• Sampling Frequency: 44.1 kHz
• Nominal Input Level:
  • GUITAR INPUT: -10 dBu

  • AUX IN: -20 dBu
• Input Impedance:
  • GUITAR INPUT: 1 M ohm

  • AUX IN: 27 k ohms
• Nominal Output Level
  • OUTPUT L/MONO, R: -10 dBu

  • GUITAR OUT: -10 dBu

  • PHONES: -10 dBu
• Output Impedance
  • OUTPUT L/MONO, R: 2 k ohms

  • GUITAR OUT: 2 k ohms

  • PHONES: 44 ohms
• Recommended Load Impedance
  • OUTPUT L/MONO, R: 20 k ohms or greater

  • GUITAR OUT: 20 k ohms or greater

  • PHONES: 16 ohms or greater
• Pedals:
  • Pedal switch x 4

  • Expression pedal x 1
• Display: 16 characters, 2 lines (backlit LCD)

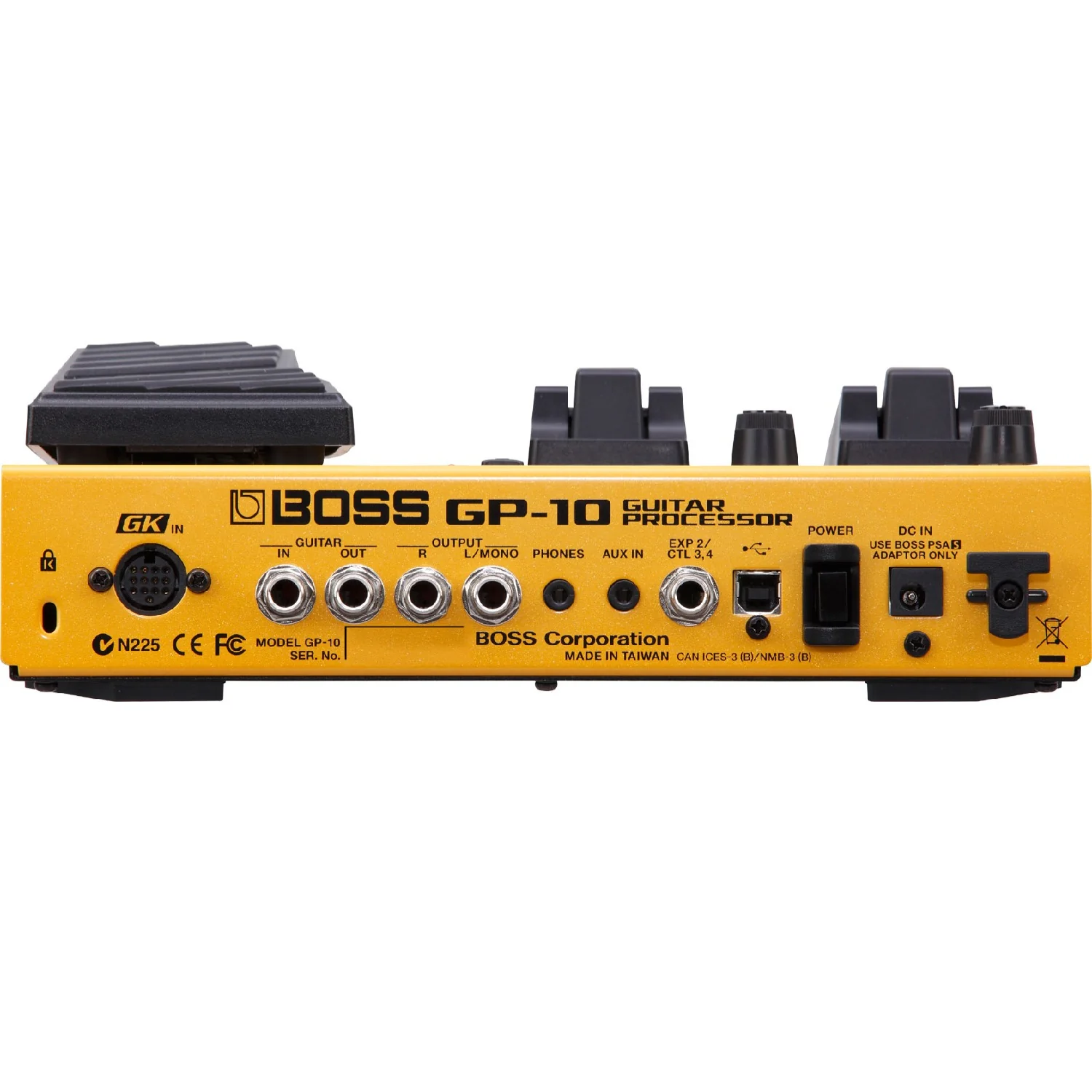

• Connectors:
  • GK IN connector: 13-pin DIN type

  • GUITAR IN jack: 1/4-inch phone type

  • GUITAR OUT jack: 1/4-inch phone type

  • OUTPUT (L/MONO, R) jacks: 1/4-inch phone type

  • PHONES jack: Stereo miniature phone type

  • AUX IN jack: Stereo miniature phone type

  • EXP 2/CTL 3, 4: 1/4-inch TRS phone type

  • USB port: USB type B

  • DC IN jack
• Power Supply: AC adaptor
• Current Draw: 350 mA
• Accessories:
  • AC adaptor

  • Owner's manual

  • Leaflet "USING THE UNIT SAFELY"

  • Divided pickup (Roland GK-3) (only for GK included model)

  • GK cable (3 m, 10 feet) (only for GK included model)

Size and Weight

• Width:
  • 251 mm

  • 9-15/16 inches
• Depth:
  • 207 mm

  • 8-3/16 inches
• Height
  • 71 mm

  • 2-13/16 inches
• Weight
  • 1.9 kg

  • 4 lbs. 4 oz.

Size and Weight (Maximum height:)

• Width
  • 251 mm

  • 9-15/16 inches
• Depth
  • 207 mm

  • 8-3/16 inches
• Height
  • 93 mm

  • 3-11/16 inches
• Weight
  • 1.9 kg

  • 4 lbs. 4 oz.

Made in China
